PRODUCT DETAILS
The APKT150415-KM carbide insert is optimized for high-feed and heavy-duty milling operations. Its KM chipbreaker design ensures reliable chip evacuation and superior stability during roughing operations.
With a reinforced cutting edge and CVD-coated carbide substrate, this insert provides exceptional wear resistance and durability for cast iron, alloy steel, and hardened materials. Perfect for CNC face and pocket milling cutters that demand both efficiency and precision.
Strong edge geometry prevents chipping under heavy load
High-feed capability for maximum material removal
Long tool life in rough milling conditions
Stable cutting with minimal vibration
Suitable for cast iron and tough steel machining
High-feed CNC milling
Cast iron and ductile iron machining
Mold base roughing
Automotive components

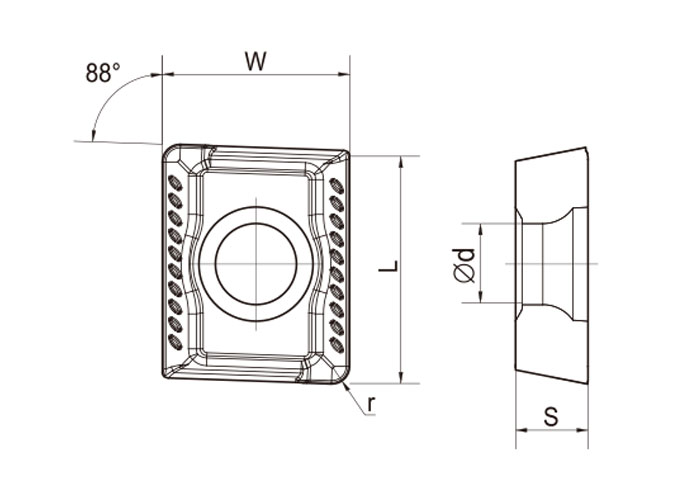

APKT150415-KM Size:
| Length |
Size(mm) |
||||
| L | W | S | d | r | |
| 15 | 16.33 | 12.7 | 4.76 | 5.4 | 1.5 |
APKT150415-KM Specifications:
| Model |
ap (mm) |
f (mm/rev) |
Grade |
|||||||
|
CVD |
PVD |
|||||||||
| KA3115 | PA4215 | PA4225 | PA1025 | PA1825 | MA1525 | SA1520 | SA1525 | |||
| APKT150415-KM | 1.2-8.0 | 0.08-0.20 | ● | ● | ● | |||||
Inserts Grade Information:
| ISO | Application | CVD | PVD |
| P | Steel | PA4215/PA4225/PA4235 | PA1015/PA1025/PA1825 |
| M | Stainless steel | MA1820/MA1824/MA1828/MA1525 | |
| K | Cast iron | KA3020/KA3040/KA3115 | |
| S |
Superalloy |
SA1029/SA1510/SA1525/SA1605/SA1610 | |
| N | Aluminum | NA10 | |
| H | High hardness material | HA1009 |
