PRODUCT DETAILS
The LNGU110412ERGR model is built for demanding heavy-duty operations. With a larger inscribed circle, thicker body and reinforced corner radius, this insert excels in large-scale shoulder milling and face milling where high metal removal rate and tool resilience matter. Ideal for high-volume production of steel and stainless steel parts.
Key Benefits & Features
Primary Use: Heavy-duty face and shoulder milling of large steel or stainless-steel components.
Geometry Advantage: Larger size and stronger body provide high rigidity for deep cuts and high feed rates.
Grade Options: PA1025 / PA1825 / MA1525.
Benefit for B2B Users: Maximised throughput, fewer index changes, lower cost per part in large-batch manufacturing.
Compatibility: Fits LNGU heavy-duty cutter systems for minimal integration effort.

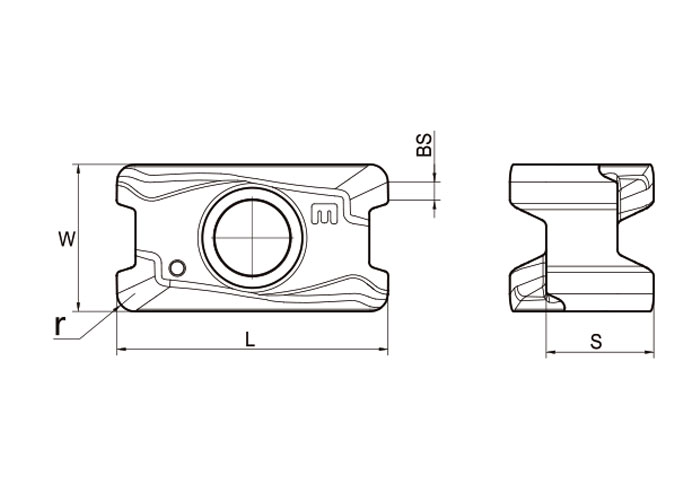

LNGU110412ERGR Size:
| Length |
Size(mm) |
||||
| L | S | W | BS | r | |
| 11 | 12.16 | 4.83 | 6.6 | 1.4 | 1.2 |
LNGU110412ERGR Specifications:
| Model |
ap (mm) |
f (mm/rev) |
Grade |
|||||||
|
CVD |
PVD |
|||||||||
| KA3115 | PA4215 | PA4225 | PA1025 | PA1825 | MA1525 | SA1520 | SA1525 | |||
| LNGU110412ERGR-GM | max=10 | 0.50-1.50 | ● | ● | ● |
|
||||
Inserts Grade Information:
| ISO | Application | CVD | PVD |
| P | Steel | PA4215/PA4225/PA4235 | PA1015/PA1025/PA1825 |
| M | Stainless steel | MA1820/MA1824/MA1828/MA1525 | |
| K | Cast iron | KA3020/KA3040/KA3115 | |
| S |
Superalloy |
SA1029/SA1510/SA1525/SA1605/SA1610 | |
| N | Aluminum | NA10 | |
| H | High hardness material | HA1009 |
